Add-on Tool · Step 3 (also 10, 14)

Asset Manager Tool

Create and analyze Asset nodes; manage Regime; set Criticality and Assurance; depict Organic / Horizontal / Derived parentage and related Element, Function, and Interface. KerML model text appears in the side panel when available.

FireSat: open Asset Manager on Fire Detection Payload to see Fire Detection Data and related Loss / Goal counts.

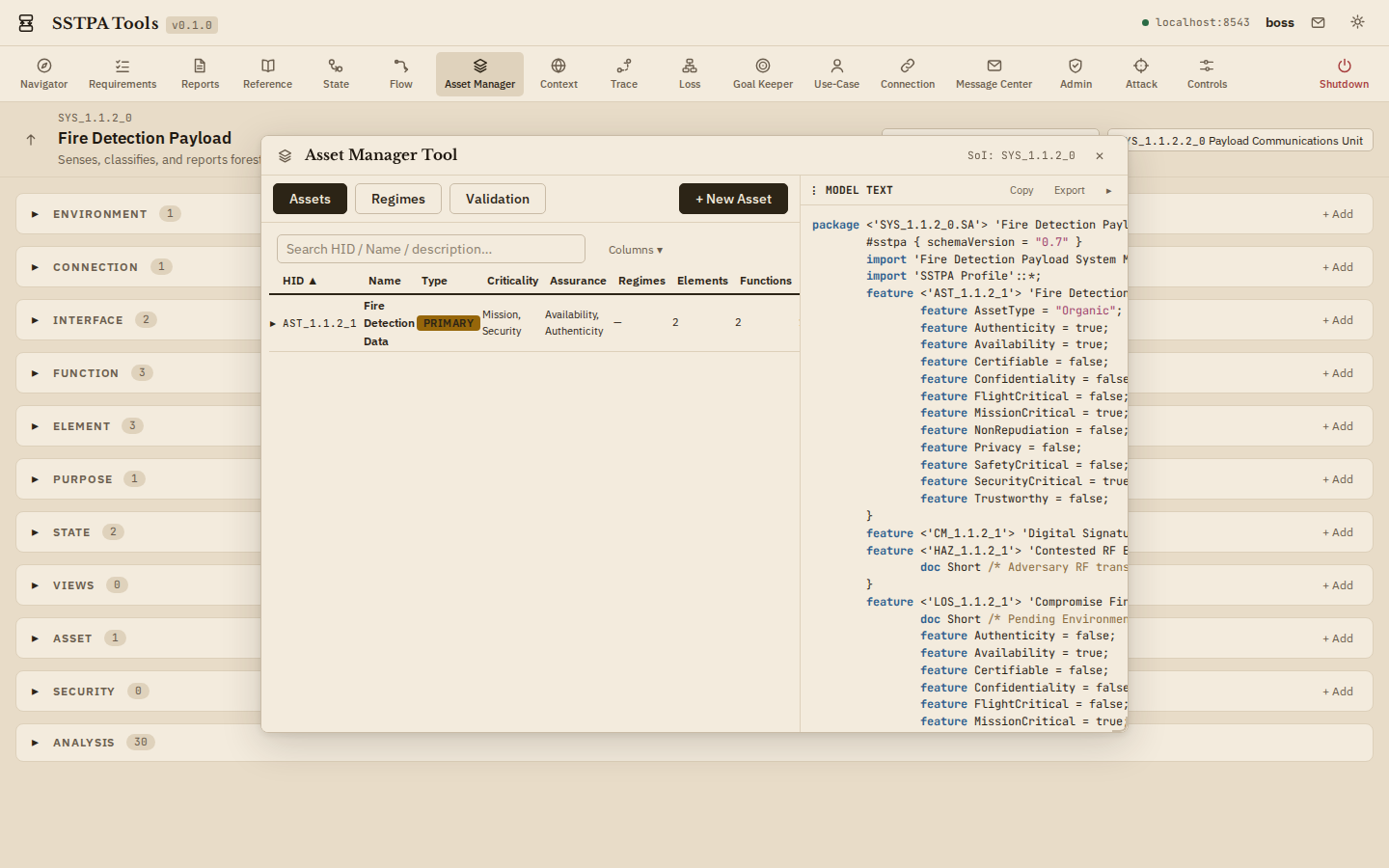

Asset Manager Tool in Light and Dark. — Light theme — Asset Manager Tool in Light and Dark.

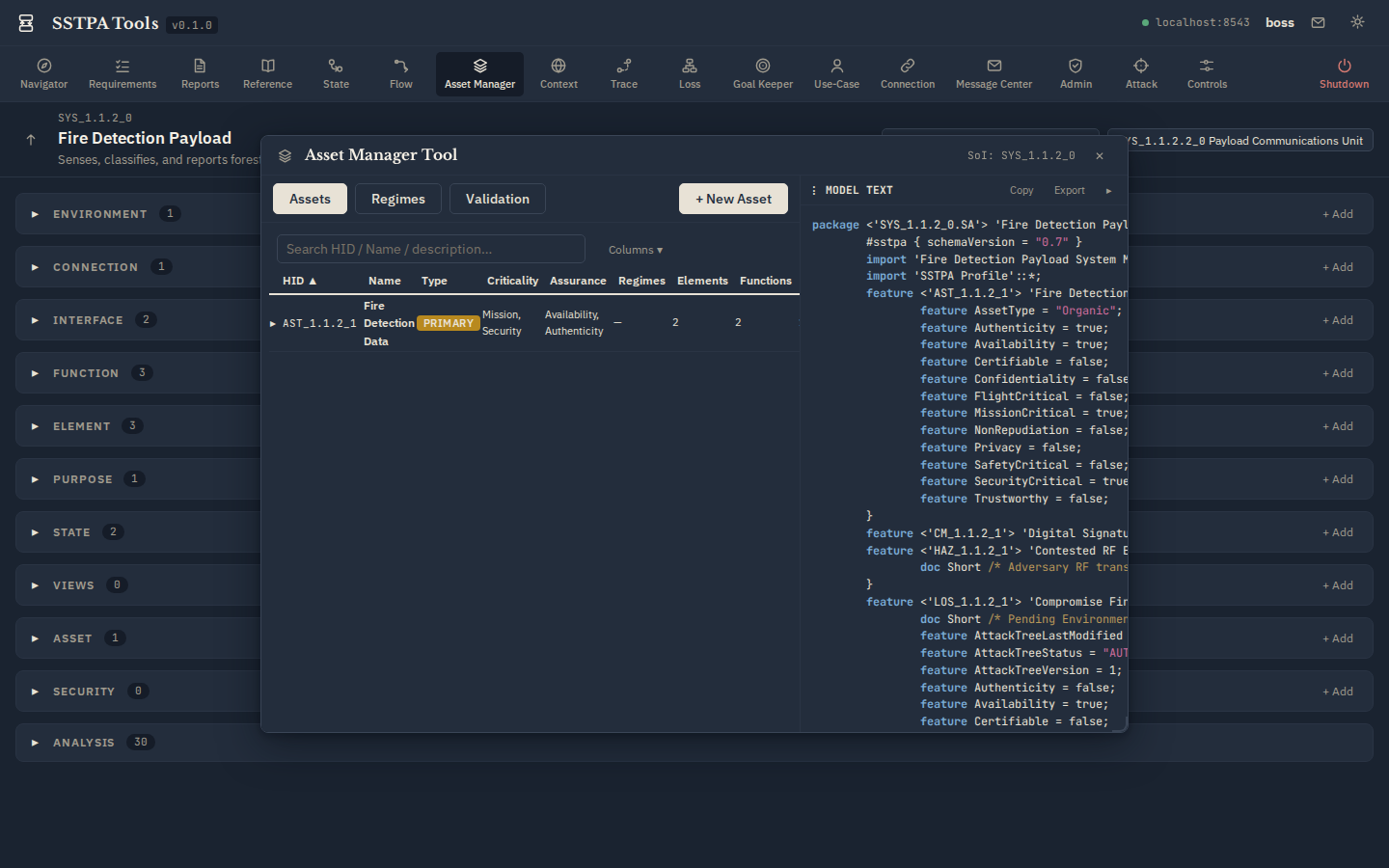

Asset Manager Tool in Light and Dark. — Dark theme — Asset Manager Tool in Light and Dark.
